DCS induction zone and coil repair
One zone dead while the others work perfectly. That is the useful version of an induction problem, because it takes the supply and the main board mostly out of the picture and puts the zone's own coil, its power stage and its cooling in front of us. Before any of that is opened there is a free check worth doing: a pan whose base is not magnetic, or has warped so it no longer sits flat, will fail on any zone and fail most obviously on the smallest. If every pan fails on one zone and all of them work on the others, that is the zone, and that is this page.
- From $95 diagnostic, credited to the repair
- 59 cities and neighborhoods covered
- OEM parts available on order
- In writing the price, before anything is opened
Before you read on
What this job costs and how it is agreed
A starting figure, not a quote. What moves it is the model, how the unit is built in and which part it needs — settled after the on-site diagnostic.
Starts at
from $215
After a diagnostic from $95, which comes off the bill when you go ahead.
or call (305) 526-4714
Diagnostic
From $95, credited to the repair
The price
In writing, before anything is opened
Warranty
On the labor we performed
On the visit
How this visit actually goes
The same order every time, so nothing is opened and nothing is charged before you have seen the figure and said yes.
-
01
Prove it is the zone and not the pan
A magnet and a known-good pan settle this in under a minute and we would rather you did it before we drive out.
-
02
Open and follow the chain

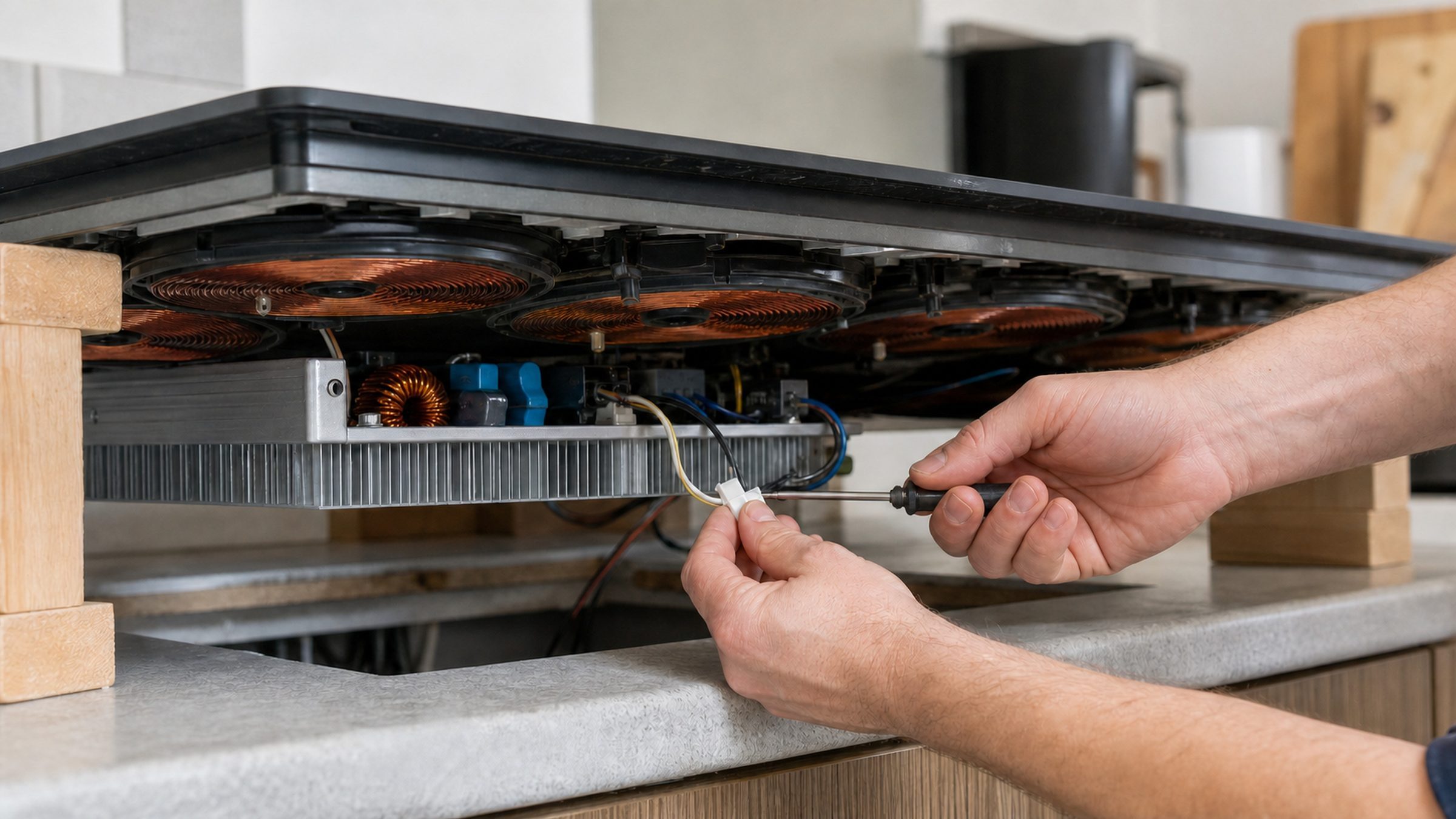

Coil, its connections, the power stage that drives it, and the temperature sensing attached to it. Connections and sensing fail far more often than coils do.
-
03
Cooling, then a full-load test
Fans and airways cleared, then every zone run under real load together. Induction problems that only appear when several zones are working are cooling problems nine times in ten.
Applies to
The DCS units we carry this work out on
-
Gas and induction · drop-in, with the range top's burners DCS cooktop repair in Miami
Two quite separate machines share this page because they share a cutout. A gas cooktop is the range's top without the oven under it, and it fails the way that top fails — ignition, seating, a blocked port, a switch. An induction cooktop is an electronics problem wearing a glass lid, and it announces itself in code: this make publishes a short, decoded list, and one of those codes is a voltage complaint rather than a problem in the machine at all. What is in the stone decides the whole visit — down to whether the person who finally solves it works for us or for the power company.
- Gas: ignition, caps, ports and switches — the same story as the range top
- Induction: a decoded code list, and one entry is about the supply rather than the cooktop
- The cutout and the worktop decide whether anything can come out at all
In more detail
About DCS induction zone and coil repair
One zone dead is the tidiest evidence on this site
If the supply were wrong every zone would misbehave; if the main control had failed the top would be dark. A single dead zone among healthy ones is unusually clean evidence and it means the machine is opened already knowing which third of it to examine. Before that there is a check worth doing at home, because it settles a real share of these calls: a pan whose base is not ferrous, or has bowed so it sits only on its rim, will fail on any zone and fail most obviously on the smallest. A magnet answers it in ten seconds. After that, connections and sensing are examined before coils, because they fail considerably more often.
This article is based on:
- Official manufacturer documentation
- Internal repair procedures
- Technician repair history
- Company quality standards
Before you book
Questions about DCS induction zone and coil repair
Could the glass be the problem?
It can be, and a crack that has not reached the surface is not always visible. If the top has been struck or had something heavy dropped on it, say so — it changes both the diagnosis and what we bring.
It works alone and drops out when other zones are running.
That is a cooling problem rather than a zone problem, and it is both cheaper and more commonly missed. Fans and airways are checked before anything is ordered.
